DLD1-180A,DLD1-160A,DLD1-160AT,
DLD1-120A,
DLD1-100,DLD1-100A,DLD1-100T,DLD1-160A,DLD1-160AT
主要性能參數
|
規格 |
16 |
40 |
60 |
80 |
100 |
120 |
160 |
180 |
320 |
|
額定動力矩N·m |
160 |
400 |
600 |
800 |
1000 |
1200 |
1600 |
1800 |
3200 |
|
額定工作電壓 |
24或110 |
24或110 |
24或110 |
24或110 |
24或110 |
24或110 |
24或110 |
24或110 |
24或110 |
|
線圈功率 (20℃) |
50 |
80 |
92 |
120 |
120 |
150 |
150 |
180 |
220 |
|
接通時間 |
0.8 |
1.2 |
1.2 |
1.5 |
1.5 |
1.5 |
1.8 |
1.8 |
2 |
|
斷開時間 |
0.6 |
0.6 |
O.8 |
0.8 |
0.8 |
O.8 |
0.9 |
0.9 |
1 |
|
允許最高轉速 |
2000 |
2000 |
2000 |
1500 |
1500 |
1500 |
1500 |
1500 |
1000 |
|
重量 |
29 |
32 |
35 |
78 |
90 |
135 |
150 |
170 |
230 |
|

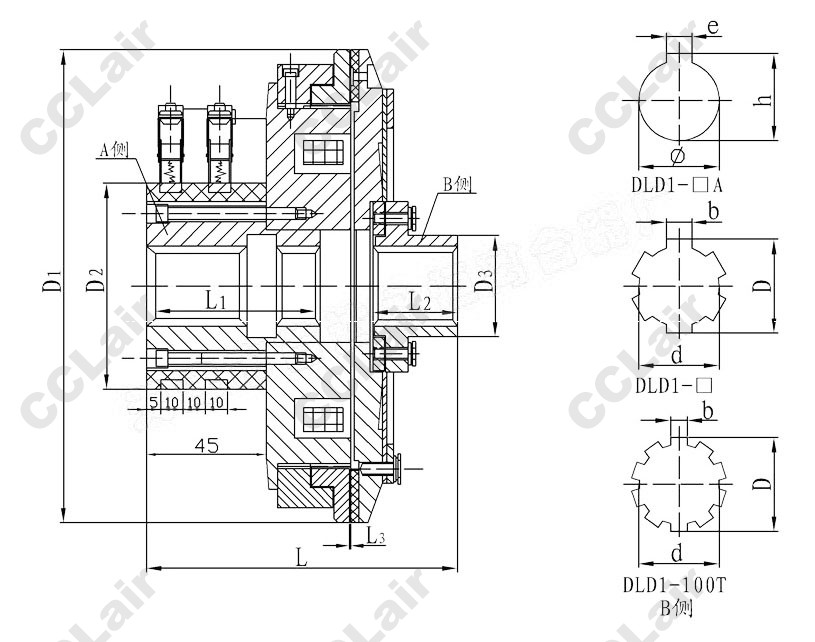

規格Size |
16 |
40 |
60 |
80 |
100 |
120 |
160 |
180 |
320 |
|
|
徑向 |
D1 |
255 |
314 |
334 |
390 |
420 |
446 |
480 |
500 |
590 |
|
D2 |
125 |
125 |
170 |
170 |
170 |
170 |
200 |
200 |
210 |
|
|
D3 |
70 |
80 |
90 |
90 |
90 |
100 |
110 |
95 |
130 |
|
|
軸向 |
L |
167 |
186.5 |
195 |
203 |
212 |
219 |
270 |
320 |
360 |
|
L1 |
75 |
85 |
83 |
83 |
105 |
105 |
110 |
130 |
150 |
|
|
L2 |
58 |
58 |
58 |
58 |
75 |
75 |
110 |
130 |
150 |
|
|
δ |
O.6 |
0.6 |
0.6 |
0.7 |
0.7 |
O.7 |
0.8 |
0.8 |
1 |
|
|
型號 |
軸向尺寸 |
|||||||||||
|
A側 |
B側 |
|||||||||||
|
D |
d |
b |
φ |
h |
e |
D |
d |
b |
φ |
h |
e |
|
|
DLD1-100 |
60 |
54 |
14 |
|
|
|
60 |
54 |
14 |
|
|
|
|
DLD1-100A |
|
|
|
60H7 |
64.4 |
18JS9 |
|
|
|
60H7 |
64.4 |
18JS9 |
|
DLD1-100T |
60 |
54 |
14 |
|
|
|
38 |
33 |
6 |
|
|
|
|
DLD1-160A |
|
|
|
65H7 |
70.6H11 |
18JS9 |
|
|
|
75H7 |
81.1H11 |
20JS9 |
|
DLD1-160AT |
|
|
|
70H7 |
74.3 |
20 |
|
|
|
55H7 |
58.6 |
16 |
